Summary

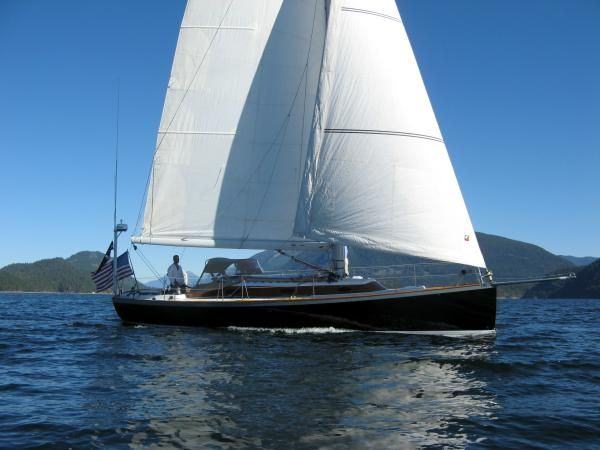

GRAY WOLF is a state-of-the-art wooden boat with strong influences from classic American work boats and yachts. Designed by Rodger Martin and built by Lyman-Morse she is intended for a wide range of sailing duties from daysailing to single-handed racing. Utilizing the latest in boatbuilding technology, she is stripped planked cedar covered with a layer of 85/l 5 fiberglass cloth and epoxy resin. A combination of laminated frames and carbon fiber combine to make her a very strong, light weight boat. For exciting performance and shorthanded sailing an unstayed carbon fiber rig by Composite Engineering was selected. With all lines led to the cockpit, this powerful rig will be easy to handle as an offshore racer or for a daysail. Water ballast is used for both comfort daysailing and to allow more power from the rig. The 7 ft. bowsprit flies asym-metrical spinnakers with a drifter set on a removable furling drum. The normal headstay sets 150% and 120% genoas and the removable inner stay sets a hanked staysail to cover the upper end of the wind range. Outer headsails are attached to a strap around the bowsprit and hauled out to the end by a tackline running inside the sprit. The mast is unstayed, but uses running back-stays for luff and tension of the jibs which was deemed to be much simpler than a 3-spreader rig initially envisioned. Given the owner’s objectives of aesthetics, speed and appropriate materials, this rig covers a wide range of conditions and types of sailing.

Specifications

  • loa 40'
  • lwl 36'8
  • beam 12' 10
  • draft 6' 11
  • fuel capacity 10 gals
  • water capacity 50 gals
  • type Sail/Racing
  • designed by Rodger Martin
  • builder Lyman-Morse Boatbuilding
  • model Custom 40'
  • year 1995
  • construction Cold Molded
  • hull material Red Cedar with Mahogany frames
  • boat engine Yanmar 3GM3D-93

Layout and Design

The deck plan layout combines the needs of dayracing and reasonable accommodations for offshore passages and cruising. Accommodations are simple and light, with plenty of space between the ballast tanks. The saloon table contains the engine, with a seat over the saildrive for chatting to the navigator or cook. A substantial bulkhead at the forward end of the saloon supports the mast and opens to the head, hanging locker and forward berth. The absence of shrouds make for clear decks and safe movement about the boat. The hull form is powerful with easy sections; a fine entry for penetrating waves and a broad, fair run aft. The keel has a steel fin with all the lead ballast in the bulb. The rudder is well aft and deep with a carbon stock. A Yanmar diesel provides auxiliary power. With a number of custom cruising accommodation plans already under consideration, this soon to be classic 40 footer, available in wood or glass, will appeal to the sailing enthusiast who values speed and comfort.

Accommodations
Number of single berths: 3
Number of double berths: 1
Number of cabins: 2
Number of heads: 1
CONSTRUCTION
GRAY WOLF is of cold molded construction built to the finest standards by Lyman-Morse of Thomaston, Maine.  They are masters of this construction method.Gougeon Brothers engineered the panels which are 1 inch strip-planked Western Red Cedar with light biased cloth runing across the seams.  All frames, (3’6″ centers) , floors and longitudinals are laminated mahogany.  Carbon fiber caps reinforce the keel floors against grounding loads.  Decking is plywood over closer spaced wooden deckbeams.  A fiberglass sump, integrated into the hull, supports the stainless steel keelfin, which is tipped by a low-drag lead bulb.  The rudder is well aft and deep, with a carbon fiber stock.  The effort was to make her immensely strong, light and fast.
LAYOUT
Please see the layout drawings in the photo section.Her design brief called for a very open, light-weight interior.  She is reminiscent of a Maine vacation cabin.  Wide-open and simple, the interior complies with the call for performance.She is open from the companionway aft, with a quarter berth to starboard and a navagation station forward.  Opposite is a simple but very functional galley with open storage underneath.  Again, the absence of lockers and drawers and other cabinetry speaks of the tendency toward performance.A structural ring frame separates the galley/nav area from the saloon which has wide settee berths with fuel and water tankage beneath.  The water ballast tanks are outboard of the settees.  The engine box is on centerline forming a table and a settee aft.

The entrance to the head is to port, forward in the saloon.  There is a passageway to the forward cabin to starboard with a full hanging locker.  The forward cabin is a full vee-berth with ample shelving and stowage.

The inside of the hull is varnished.  The balance of the interior is painted white with varnished trim.
RIG

  • Unstayed Carbon Fiber Mast and Boom by Composite Engineers
  • Removable Carbon Bow Sprit:  7′ long; Easily Unshipped
  • Colligo Continuous Furler, 2009, with soft stays for each headsail
  • Vectran Runners with Karver Blocks: 3:1 purchase
  • 2 Anderson 46st winches for runners
  • 2 Anderson 48st halyard winches on house top in cockpit
  • 2 Anderson 40 st halyard winches at mast
  • 2 Anderson 52st primary winches
  • 2 Anderson 46st main sheet winches
  • Quikvang Boom Vang
  • 2 Jib halyards, 2:1 Dyneema for soft furlter system, new
  • 2 Spinnaker Halyards
  • Main Halyard
  • Lewmar Halyard Locks
SAILS

  • Bohndell   Storm Trys’l
  • Bohndell   Storm Jib
  • Bohndell   Stays’l
  • Sobstad    120% Jib
  • Sobstad    Light Drifter
  • Doyle        Mainsail, 2005 Spectra
  • Sobstad    Asymetric with Spin Sock
  • North        Code 2 Asymetric, 2006
  • North        Code O Asymetric
  • North        3DL 150% Genoa
  • Sail Area:  1110SF
  • P= 59′
  • I = 47′
  • E = 18′
  • J = 14’@2.2′
  • S = 7′

CANVAS:

  • Cockpit Cover, 2007
  • Boom Cover
  • Dodger
  • New stowage bags in lieu of shelves and lcokers:  2 in main cabin; 2 in forward cabin
ELECTRONICS

  • Robertson AP300x Auto Pilot
  • Roberson Tiller Pilot
  • ICOM SSB Radio
  • ICOM VHF Radio
  • Northstar 951 GPS
  • Garmin 76 GPS
  • Furuno Radar.  Dome on removable Carbon Fiber pole.
  • EPIRB
  • Cetrek Sailing Instruments:  Depth, Speed , Wind, Close Haul, Compass

ELECTRICAL:

  • Solar Charger on Sprayhood
  • 12V Starting Battery
  • 12V AGM House Battery
  • Bass Breaker Panel
TANKAGE

  • Port and Starboard fuel tanks with shift valves in engine compartment; 10 gallons each
  • Polyethylene water tank under cockpit sole, visible from cabin area, 50 gallons
  • Waste tank, under vee berth in forward cbain with Y-valve shifting to manual bilge pump.  20 gallons
ENGINE & MECHANICAL

  • Yanmar Model 3GM3D-93
  • 836 Hours, July 2011
  • SD20 Saildrive
  • Volvo 2 blade folding propeller
  • Racor Fuel Filter

WATER BALLAST:

  • Port & Starboard tanks with 3 plexi viewing ports holding 250 Gallons each, weighing 2500# each when filled
  • Each tank is divided into 3 baffled areas
  • Windward tank is filled via 12v water pump in five minutes
  • Transfer by release of dam in cockpit takes less than 1 minute
MISCELLANEOUS

  • Cockpit Cushions
  • Wallas Hot Air Heating System
  • Force 10 2 burner stove, gimballed
  • New Stowage Bags
  • Safety Gear
  • Dock lines, Fenders
  • Fortress anchor and rode
